Diverter Dampers
Key Features:
- Precise Flow diversion or complete isolation in large ducting system
- Engineered to perform reliably in high-temperature & corrosive gas process environments
- Designed using advanced sealing systems to achieve zero leakage performance
- Robust construction ensures heavy duty performance & longer service life
- Safe operation & efficient system response using automated actuation with Electrical, Pneumatic & Gear operated systems
- We manufacture: Electric operated Rectangular Diverter Damper, Diverter Damper with Manual Override, Motorized Diverter Damper, Pneumatic Cylinder Operated Diverter Damper, Pneumatic Diverter Damper
Hubluxe Engineering design & manufactures various Diverter Dampers for isolation, diverting & controlling gas flow in large industrial ducting system.
Hubluxe Diverter dampers are designed for sever service conditions to ensures highest safety, highly efficient and highly reliable in managing the critical process applications.
Hubluxe uses a robust construction mechanism for sliding blades, which manages the exhaust or hot gases to divert between multiple outlets or in certain condition when complete isolation is required.
Designed for severe service environments, our diverter dampers deliver smooth operation, high structural integrity for extreme performance under high temperature, high pressure and unstable process conditions.
Built with precision and strict quality control, HUBLUXE Diverter Dampers are perfect solutions for Gas turbine exhaust system, Power plant, Waste heat recovery units (WHRU), cement, steel plants, refineries etc.
Types of Diverters: Rectangular / Circular (based on ducting types)
Size Range: 200 mm to 3500 mm (higher sizes on request)
Material of construction: Carbon Steel, Stainless steel or high temperature alloys
Media / Application: Air, Flue Gas, Process Gas
Blade design options: Flat plate rotating or sliding type for flow diversion / isolation
Sealing type: Metal to metal or with Air seal arrangements
Sealing efficiency: High sealing also zero leakage options available
Temperature: Designed to handle temperature upto 1000 deg.C (with cooling arrangement options)
Pressure: Low to moderate pressure
Operation: Manual / Pneumatic / Electric / Hydraulic Actuator
Testing standards: AMCA 511 / ASME AG-1 / API 609 / ANSI FCI 70-2
Design standards: ASME B16.34 / ISO 5752 / BS EN 558 / API 609

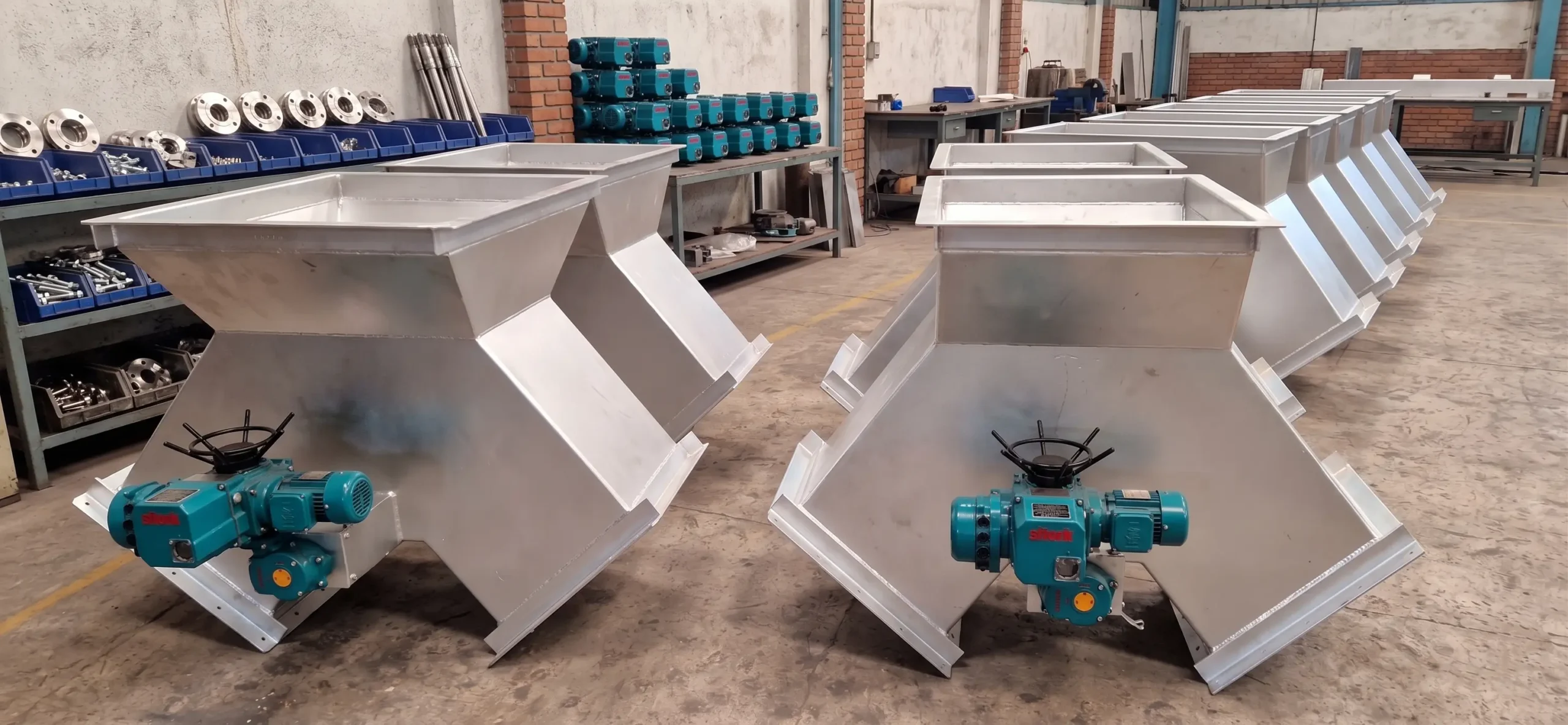

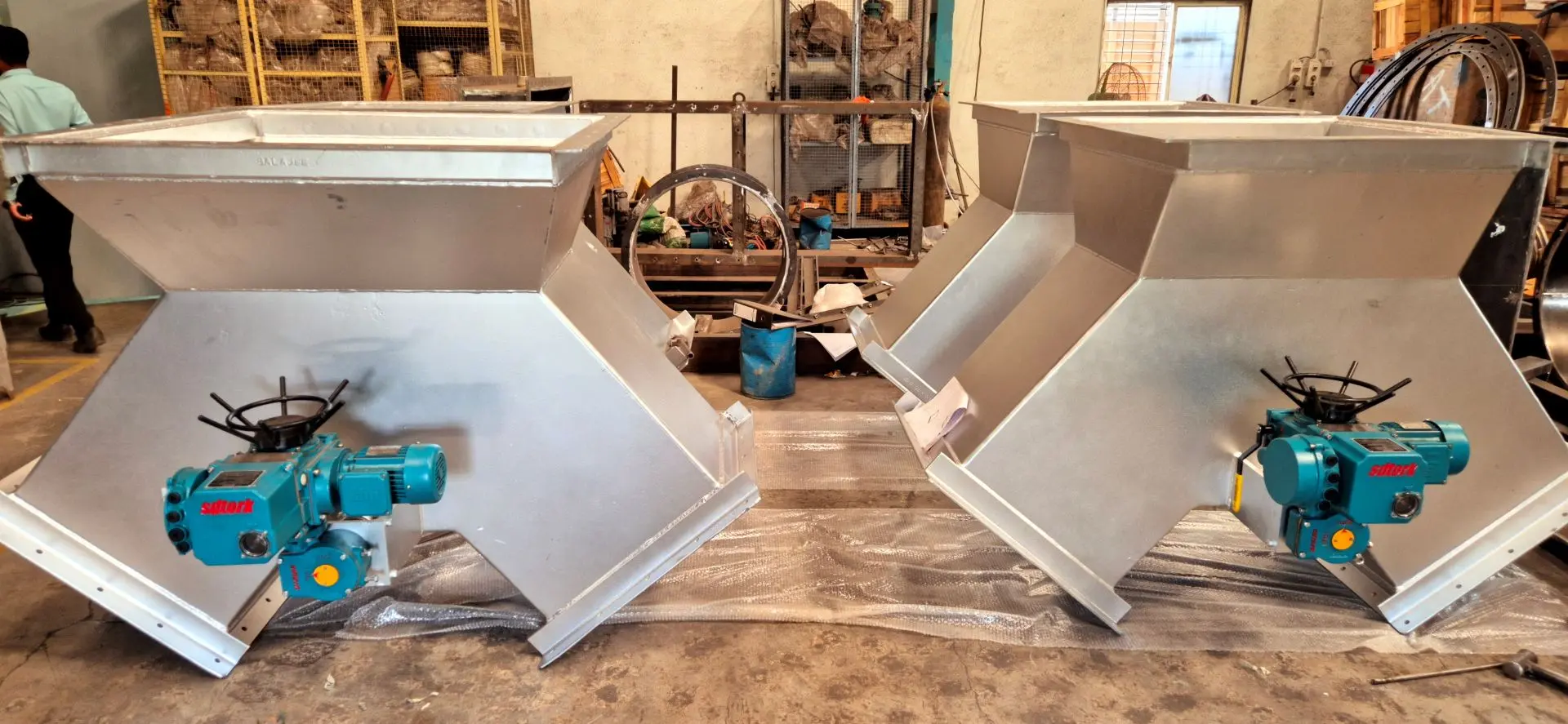

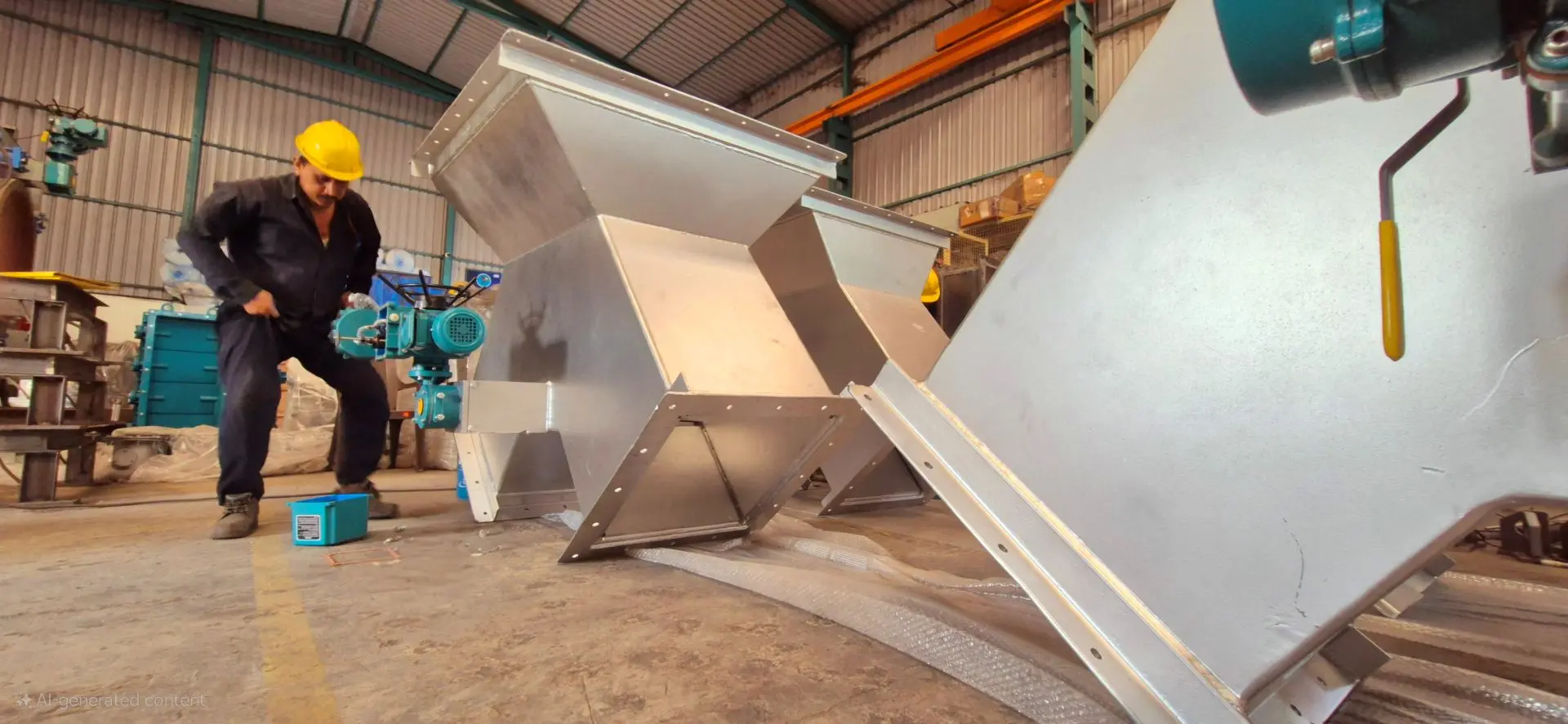

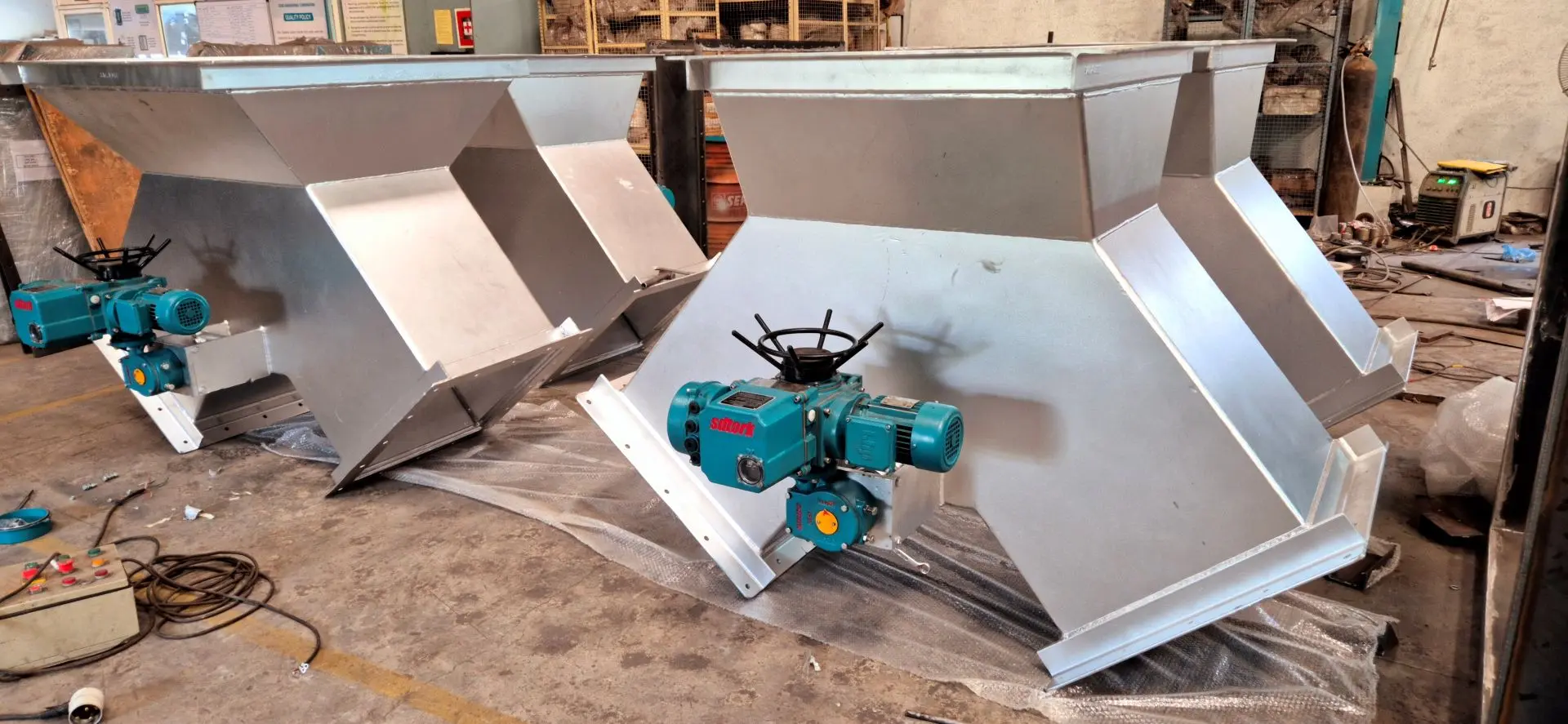

Product Gallery:
Applications:
- Ventilation and exhaust systems
- Waste heat recovery systems
- HVAC systems
- Cement Industries
- Iron & Steel Mills
- Oil & Gas Industries
- Marine Industries
- Petrochemcial Industries
- Thermal Power Plants
Why Hubluxe Diverter Damper?
- Each Diverter damper is custom made which are engineered to perform in critical applications
- Proven engineering design for power, energy & gas turbine systems
- Highly reliable design, extended service life and excellent tight shutoff mechanism
- Delivering automated, fail-safe operation suited for continuous industrial duty
- End to end capabilities covering – design, manufacturing, fabrication & quality testing all under one roof
- Backed by Technical experts, online & on-site support and commissioning teams to assist in critical installations
Working Principle of Diverter Damper
When it is in OPEN state, the damper blade is aligned with the duct, allowing the gas media to pass through the primary flow path without obstruction or pressure loss. This ensures smooth and uninterrupted system operation.
Transition / Closing Movement:
When actuation is initiated, it rotates or slide the blade into the required position. During this stage, the gas flow begins to either divert or isolates, depending on the operational requirement.
Closed / Diverted Position
When it is in CLOSED state, the blade completely blocks the main duct or redirects the gas flow toward an alternate path (bypass line). High performance sealing arrangements ensure minimal to zero leakage, enabling effective isolation of the system.
